Manual Polarization Controller, FPC - 1

Features

Specifications

Ordering options

Product data sheet (pdf)

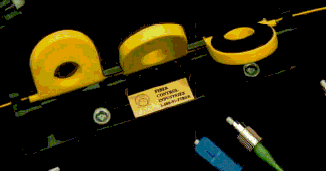

Fiber Control's polarization controller's unique user-friendly design utilizes stress - induced birefringence to alter and control the state-of-polarization of light in single-mode fibers. Each paddle acts as a fractional waveplate. Complete coverage of the Poincaré sphere and polarization is provided by adjusting the angles of the paddles.

The multiple channel diameters were designed to maximize end-user flexibility over a variety of wavelengths and applications. Originally patented at Stanford University by Hervé C. Lefèvre.



Features:

  • Easy top-down fiber loading with paddles in locked positions (no tools required)
  • Dual diameter channels in each paddle broaden the wavelength operation of one fiber type
  • Accommodates both 900µm buffer and 250µm bare fiber
  • Sure grip pliable caps easily secure fiber in paddles
  • Small footprint, lightweight design
  • Multidirectional placement on optical table with 1/4" x 20 or M6 screws
  • Smooth adjustable rotation
  • Inserts quickly into fiber-based systems without splicing
  • Multiple color paddles enhance identification for WDM

Specifications:

  • Extinction Ratio (typical)
  • Insertion Loss (typical)
  • PDL (typical)
  • Footprint Dimensions:
  • Broadband Operation:

35dB†
≤0.1dB†
0.003dB
1.0" x 5.9"; 25.4mm x 150mm
500nm x 1600nm

† measured with Lucent SMF; two loops outer channel, at 1550 nm

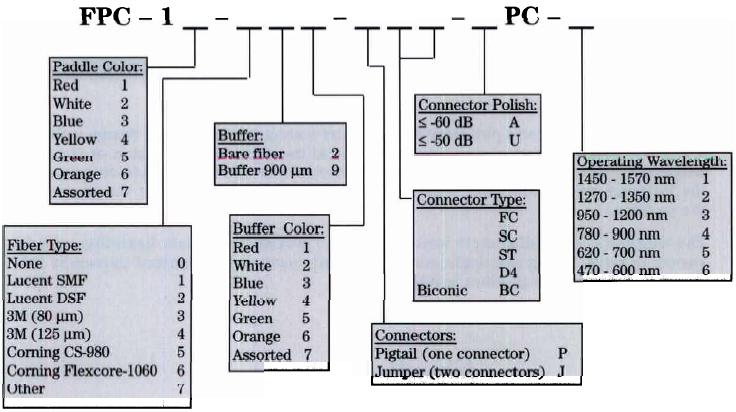

When ordering, please select from the option tables below:



1-888-91-FIBER toll free

732-332-1860 telephone

732-332-1861 facsimile
