Polarization-Dependent Scrambler - RCPS-600



Products



Home





Manual Polarization Controller





Motorized Polarization Controller





Polarization Control Box





Polarization-Dependent Scrambler





Polarization-Independent Scrambler



Features

Applications

Specifications

Ordering options

Product data sheet (pdf)

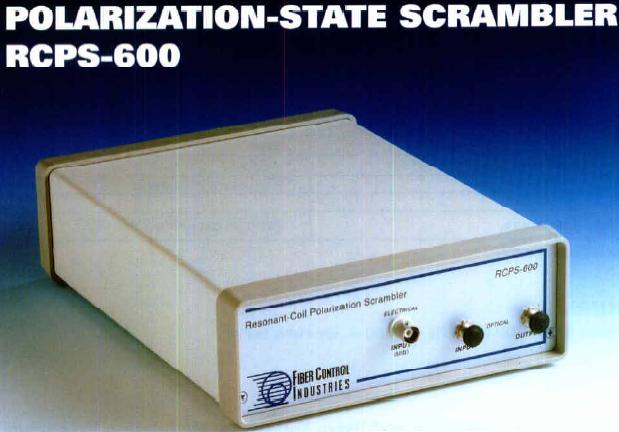

Fiber Control Industries Resonant-Coil Polarization Scrambler converts highly polarized light into light with a scrambled polarization by rapidly modulating the state-of-polarization — creating a time-varying birefringence within the fiber.



Typical function generators (± 10 Volts, Z0 = 50 ) provide adequate power for operation near 600 kHz. Optional integrated booster amplifiers extend the range of modulation frequencies up to 1 MHz.

Features:

  • User friendly bench top unit
  • Fully licensed
  • Broad range of modulation frequencies
  • Connectorized input/output
  • Low back-reflection
  • Low insertion loss

Applications:

  • Reduce the effect of of PDL of measurements within optical test-sets
  • Reduce polarization-dependent effects within EDFA based optical transmission systems

Specifications: (optical, line power, physical)

Optical input/output connectors

FC/UPC or FC/APC (Molex®)

Minimum Degree-of-Polarization @ 600 kHz

< 2% (typical)

Insertion-loss

< 1 dB

Return loss

> 60 dB (with FC/UPC or FC/APC)





Electrical input connector

BNC Connector (AMP®)

Modulation Rate* (nominal)

600 kHz, 600 kHz - 1 MHz

Modulation Signal Waveform

Sine

Modulation Voltage, 50 @ 600 kHz

< 20 Vpp

Resonant Coil Material

Piezoelectric Ceramic (PZT)





Physical dimensions

7x19x26 cm (2 3/4 x 7 1/2 x 10 1/4)

* - including option B

Options:

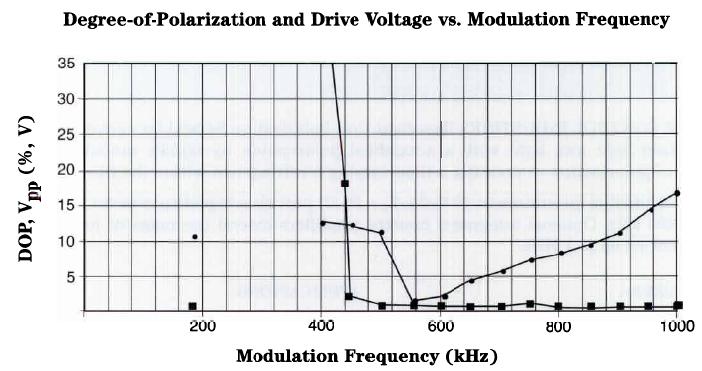

  • Model RCPS - 600B (600 kHz - 1 MHz) — see below





1-888-91-FIBER toll free

732-332-1860 telephone

732-332-1861 facsimile





http://www.fibercontrol.com
